When diving into DIY projects or professional machining tasks, understanding drill and tap sizes is essential. Whether you’re assembling furniture, building machinery, or tackling plumbing issues, proper sizing ensures effective fits and strong connections. Let’s explore what drill and tap sizes are, and how to choose the right ones for your needs.
What Are Drill and Tap Sizes?

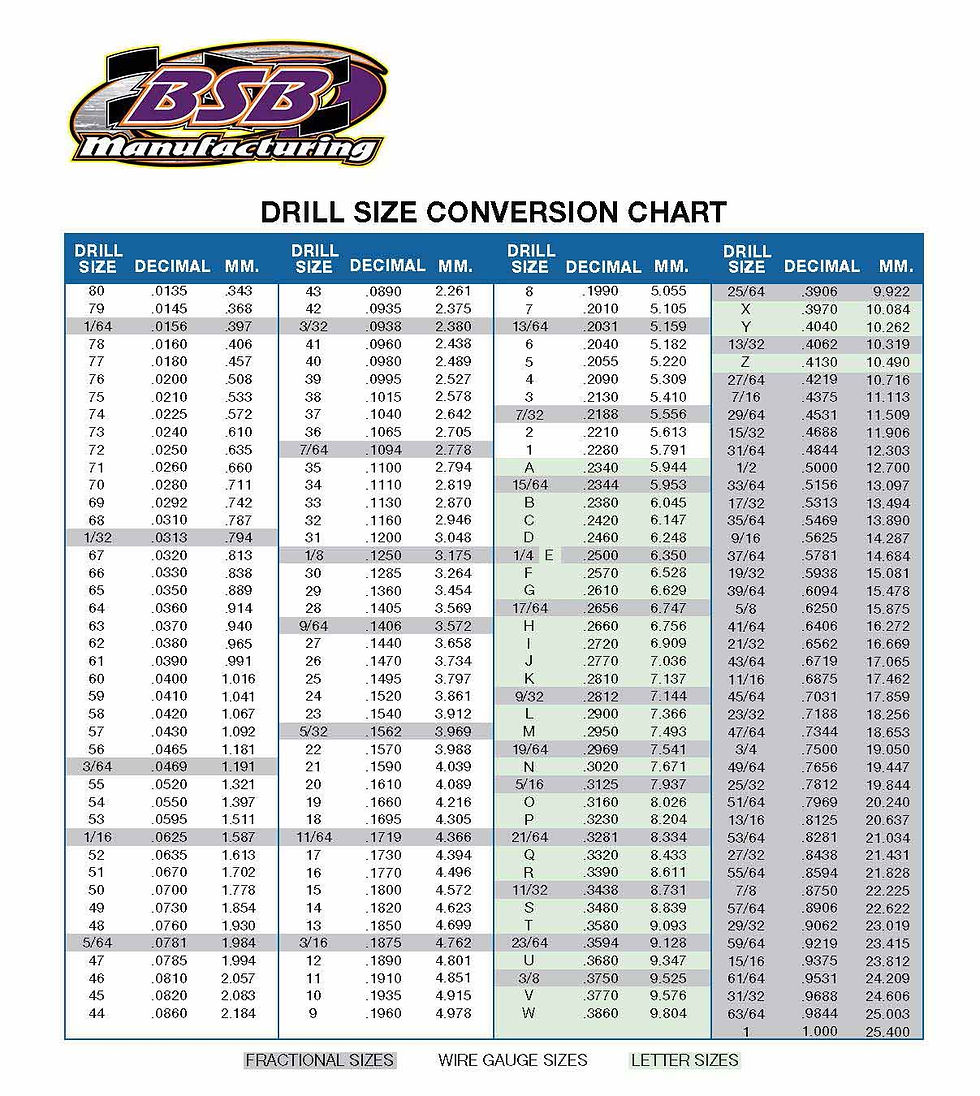

Drill Size: Drill sizes refer to the diameter of the hole that you will create using a drill bit. They can be expressed in fractional inches, millimeters, or in standardized sizes (like letter or numbered drill bits).
Tap Size: Tap sizes refer to the standards used to create internal threads in a hole. Taps are classified according to the size of the screws or bolts they will fit. Commonly, tap sizes are given in relation to the Unified Thread Standard (UTS), which includes details on the major diameter (outer diameter of the screw) and the threads per inch (TPI).
Why Are They Important?
Using the correct drill and tap sizes is crucial for several reasons:
1. Correct Fit: An improperly sized drill bit can lead to loose or incorrectly aligned fasteners, compromising the structural integrity of your project.
2. Strength and Durability: Proper threading ensures that screws are secure firmly in their locations, reducing the risk of fasteners loosening over time.
3. Reducing Frustration: Utilizing the correct sizes prevents the need for rework, saving you time and effort!
Different types of taps:
Thread pitch, you have fine and coarse threads.
Taps are available in various types—such as taper taps, plug taps, and bottom taps—each serving a different purpose. Choose the type based on the depth and precision required for your threading.
There are different taps for pipe, Straight and Taper and they require some skill to use.
Form taps are used to form a hole instead of cutting it, this is more for marching and not for use by hand.
There is a lot more to threaded holes and taps than we are going to cover here, and it can get very deep into the information pool. But if you are trying to drill a hole and need a drill size and tap to do it this blog has got you covered. Good luck, use a lot of lube, and don’t break the tap.
